Complete Results @ http://www.newx-forecasts.com/

Follow the left-panel link from '24th Annual Snow Storm Contest > Verified Forecasts > ‘Storm #2’ to see the complete forecasters’ verification table by station



In the table ...

Yellow cells indicate the best score in category.

Forecast STP cells:  yellow if within +/- 5% of observed STP.



Blue (Red) cells indicate the 25% (75%) percentile.



SUMSQ:  sum of square errors (measure of forecast accuracy accounting for magnitude and distribution of snowfall)

STP:  storm total precipitation

TAE:  total absolute error
AAE:  average absolute error



Final Standings - all Forecasters



---

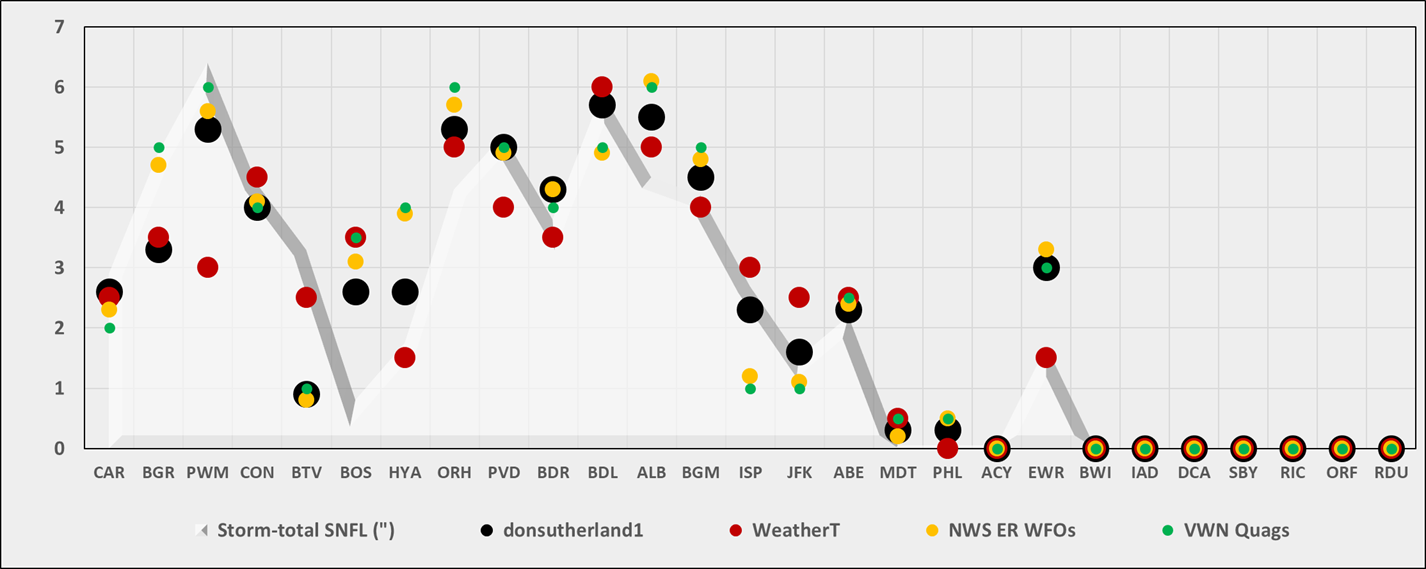

Station by Station Comparison of Top 4 Forecasts and Observed Storm-total Snowfall (STP)





---

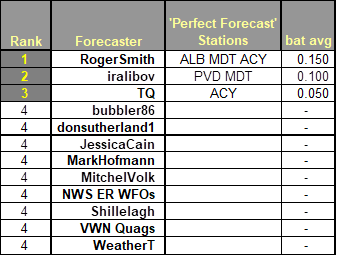

Perfect Forecasts (Batting Average - Forecast Stations with No Error)

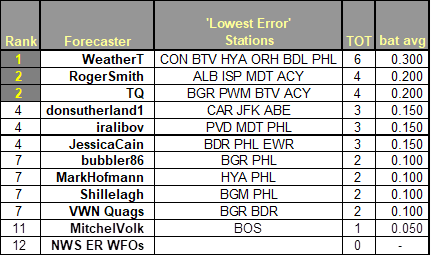

Best Station Forecasts (Batting Average - Forecast Stations with Lowest Absolute Error)

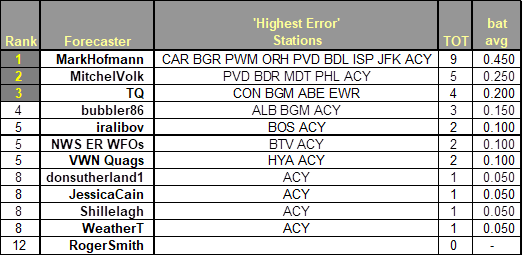

Best Station Forecast Busts (Batting Average - Forecast Stations with Highest Absolute Error)



---

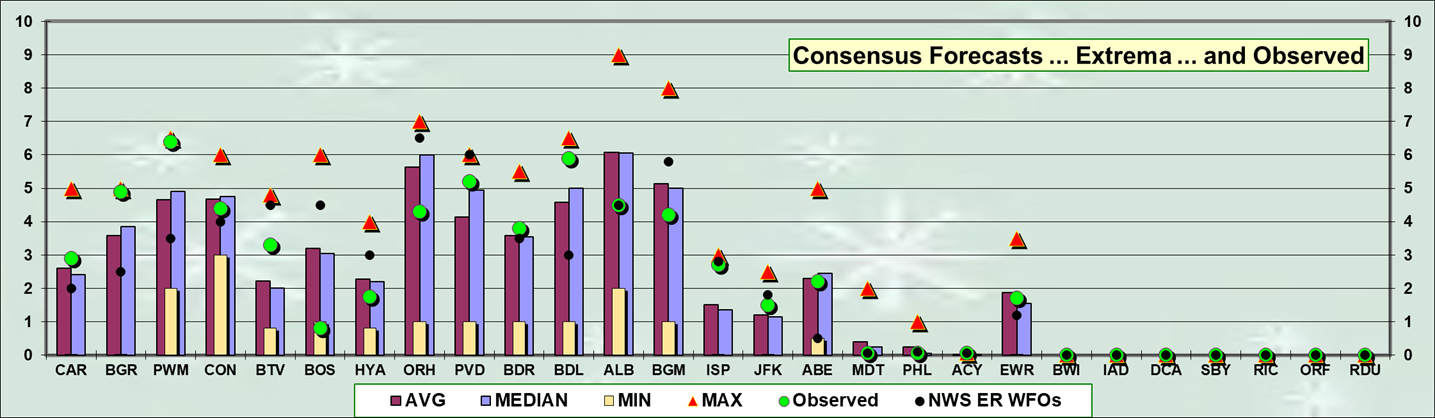

Consensus Forecasts … Extremes … and Observed Snowfall

Consensus forecast best @ CAR … CON … BDR … JFK … ABE … EWR

MAX forecast best @ BGR … PWM … BDL … ISP

MAX forecast less than observed @ none

MIN forecasts best @ BOS

MIN forecasts more than observed @ none



---

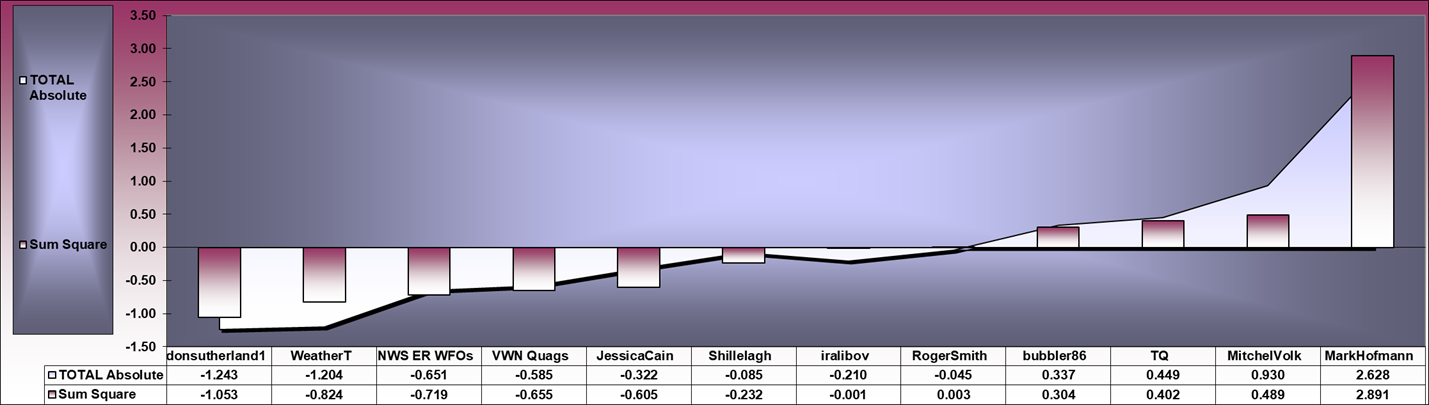

Total Absolute Error and SUMSQ Error

Strong correlation (R = 0.975) between SUMSQ and TAE Z-scores



---

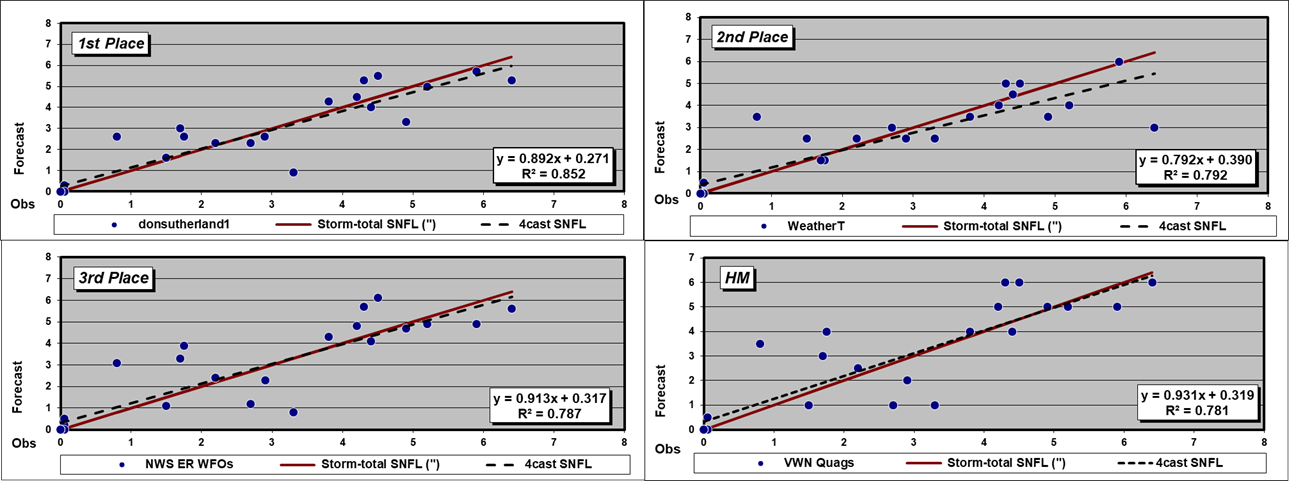

Forecast by Observed Snowfall Scatterplots (Top 4 Forecasts)



A dashed Forecast trend line above (below) solid red Observed snowfall line ==> over (under) forecast

R2 value indicates how well the forecast captured the observed snowfall’s variability … i.e., R2 = 0.874 ==> the forecast captured ~87% of the observed snowfall’s variability.



---

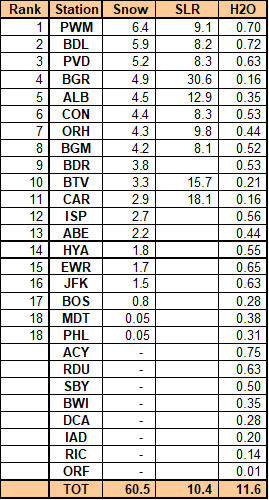

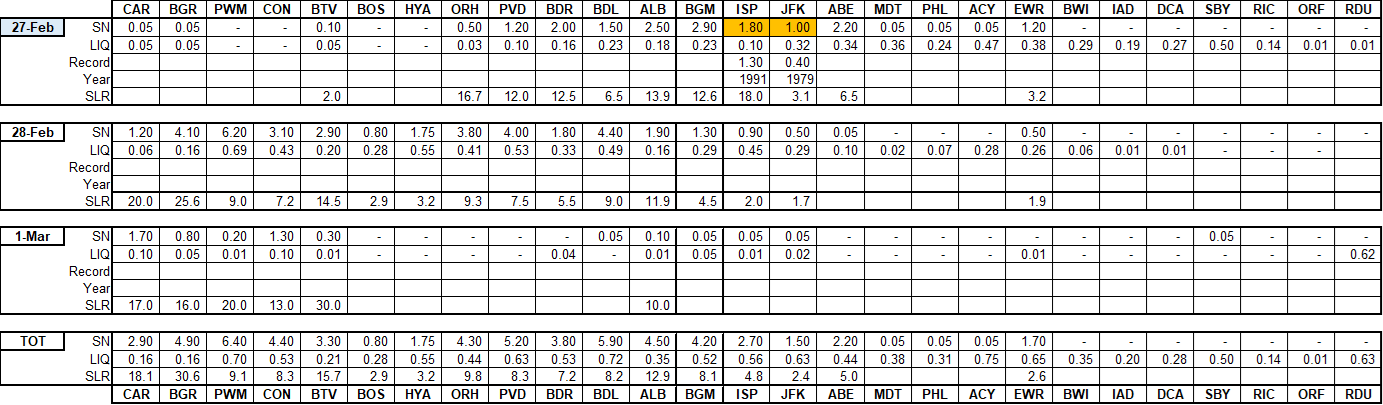

Verification of storm-total snowfalls for MON thru WED based on reporting found in CDUS41 (CLI) ... CXUS51 (CF6) ... METARs ... and PNS bulletins issued by NWS.

Excellent coverage and reporting.

HYA
1.8" derived from inverse distance weighting technique applied to vicinity reports carried by BOXPNS.



---
Stations with Snow-to-Liquid Ratios (SLR) of less than 8:1 are unreported for stations having where liquid and / or freezing precipitation also occurred during the verification period.


---
Stations observing >= Trace:  19 (70%)

Stations observing > Trace:  17 (63%)



Given stations had measurable snowfall; stations observing at least:

4" - 8 (30%)

6" - 1 (4%)



MAX snow melt-water (minimum SLR 8:1)

BDL - 0.72"

PWM - 0.70"

PVD - 0.63"



MAX precipitation (frozen + freezing + liquid)

ACY - 0.75"

BDL - 0.72"

PWM - 0.70"



---

New daily snowfall record(s)

ISP - 1.8" (1.3"; 1991)

JFK - 1" (0.4"; 1979)
---


Orange cells indicate new daily record.
Trace amounts (0.05") not included in STP.

---

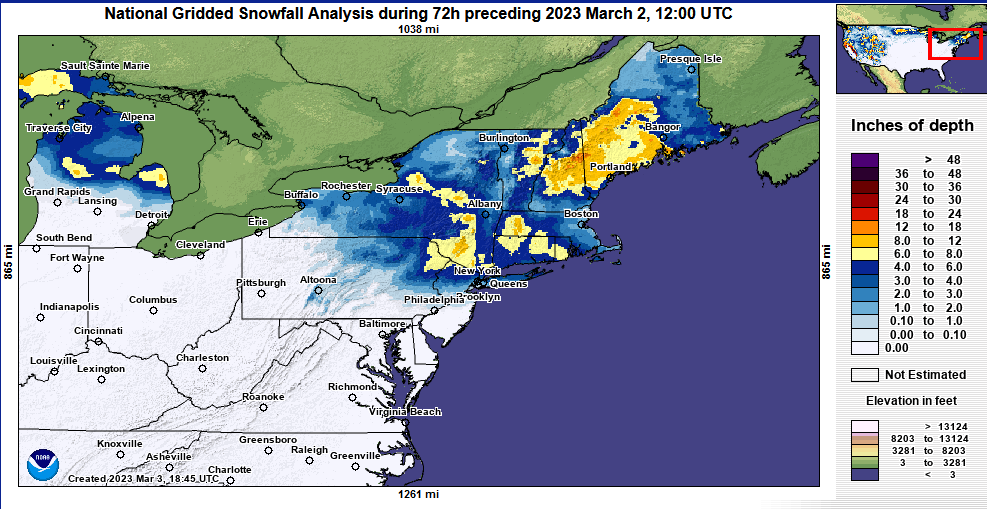

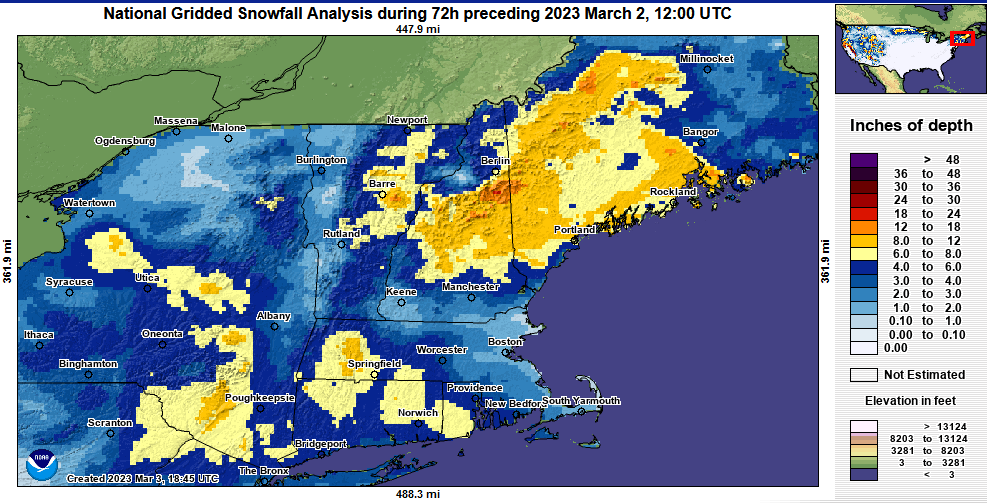

Approximate storm-total snowfall courtesy NOHRSC



---

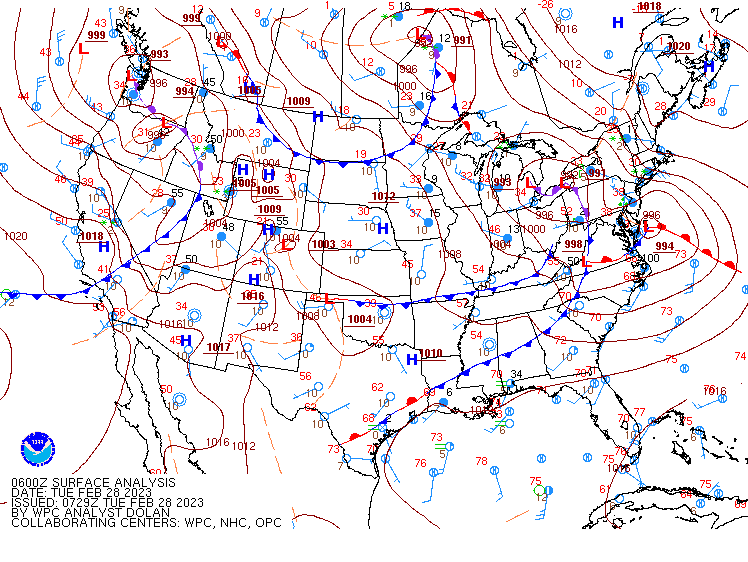

SFC analysis:  06z ... 28-FEB-23 and Storm-total Snowfall by Station



Image courtesy DOC / NOAA / NWS / NCEP / WPC

https://www.wpc.ncep.noaa.gov/html/avnsfc.shtml



---

Teleconnections

Teleconnection time-series data courtesy CPC

---

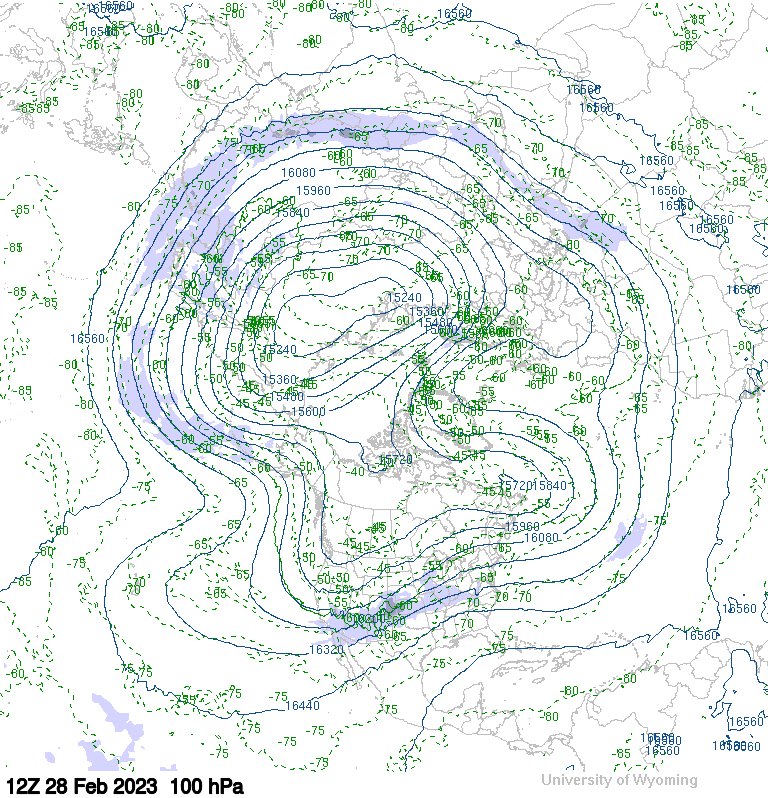

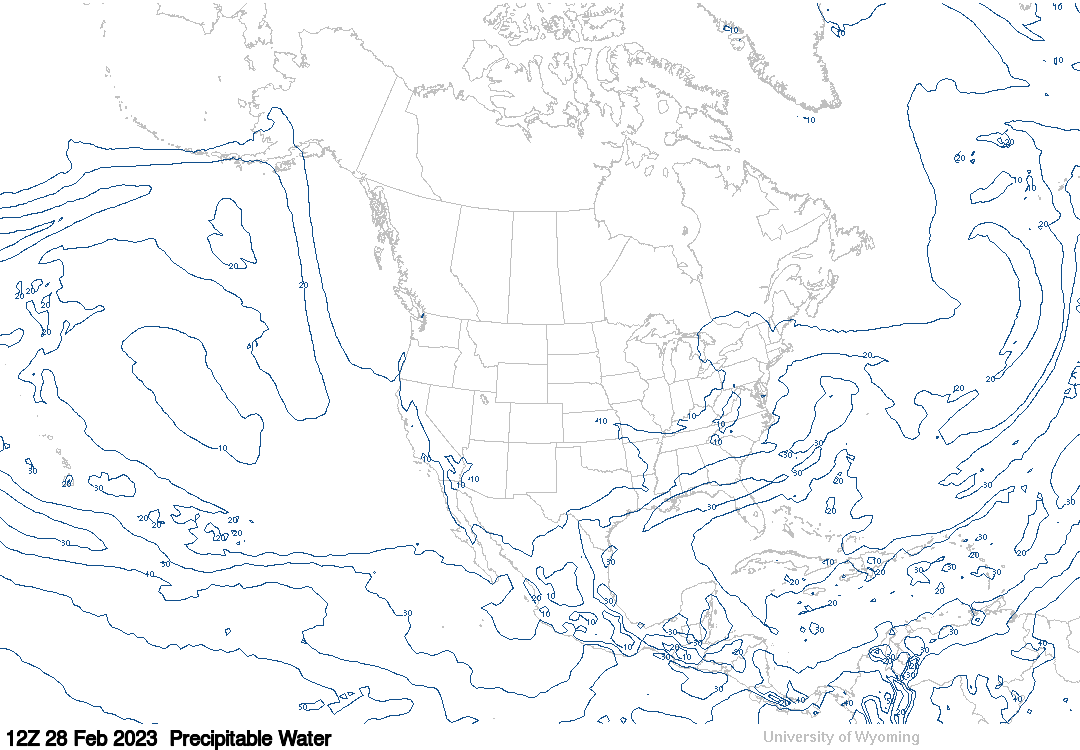

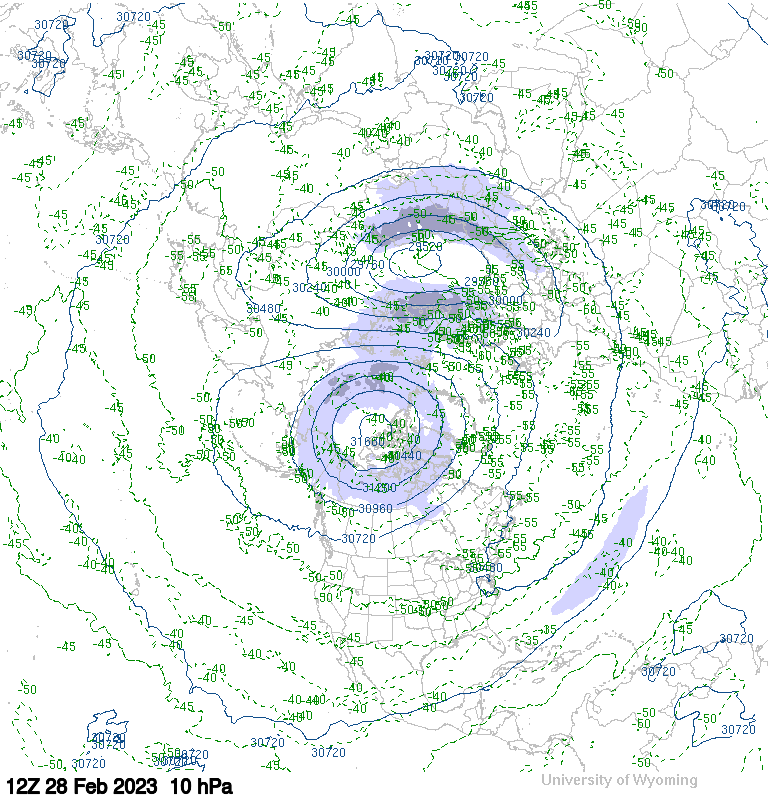

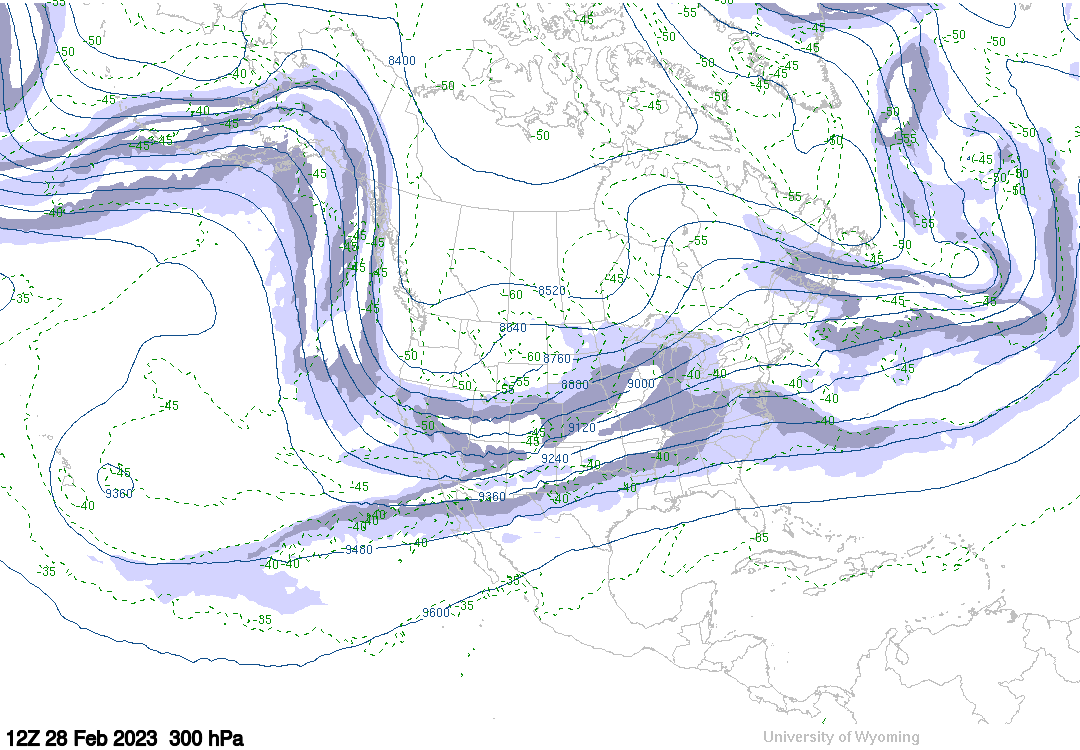

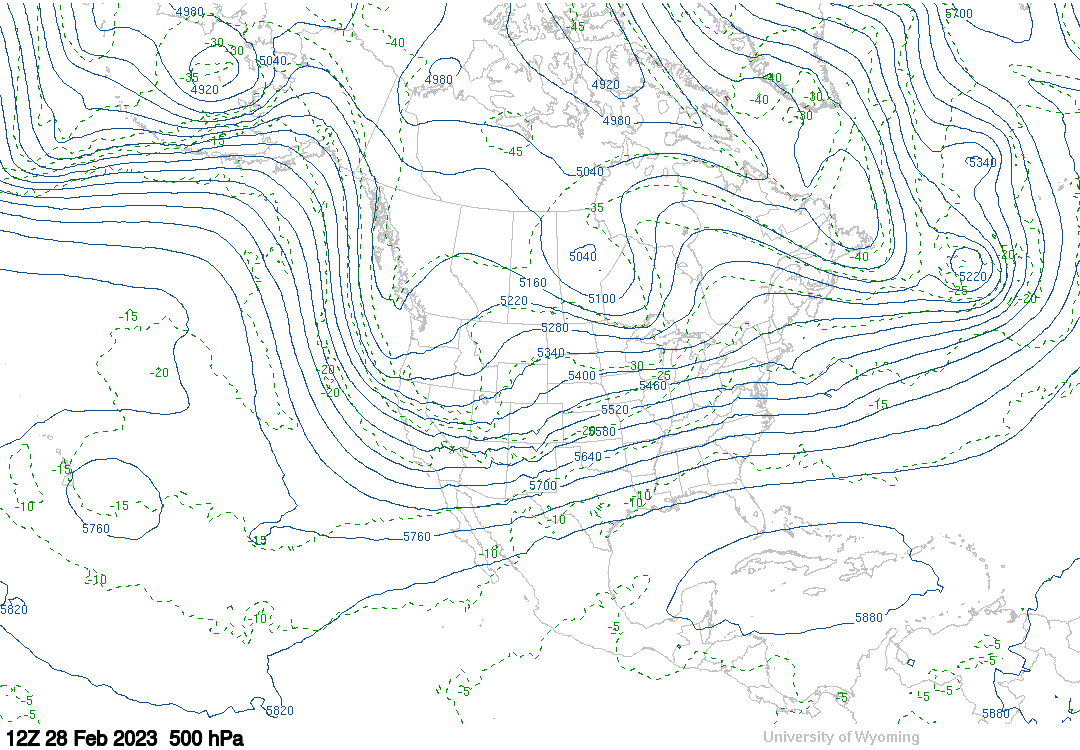

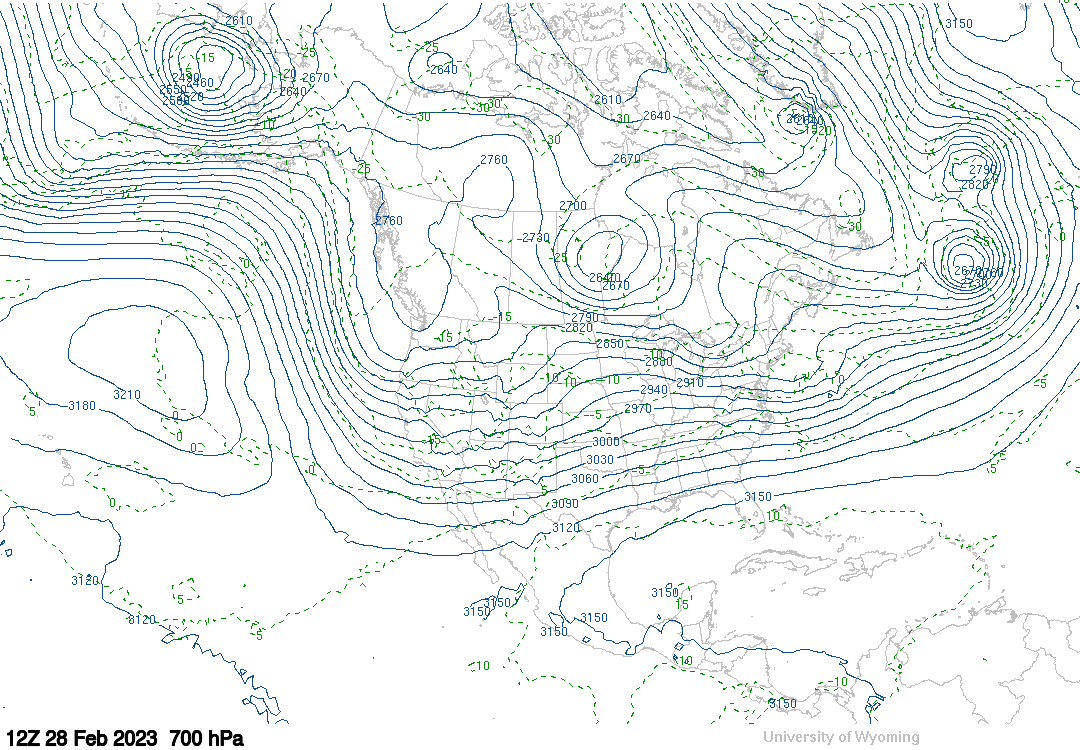

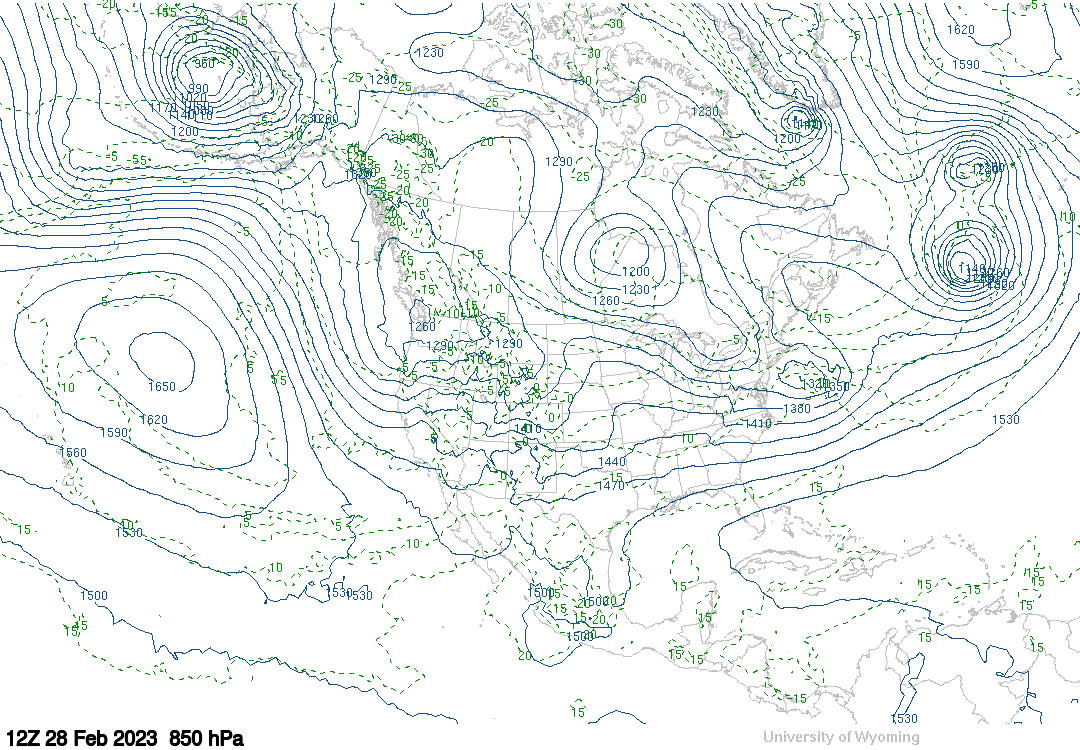

Upper Air









Upper air charts courtesy University of WY



---

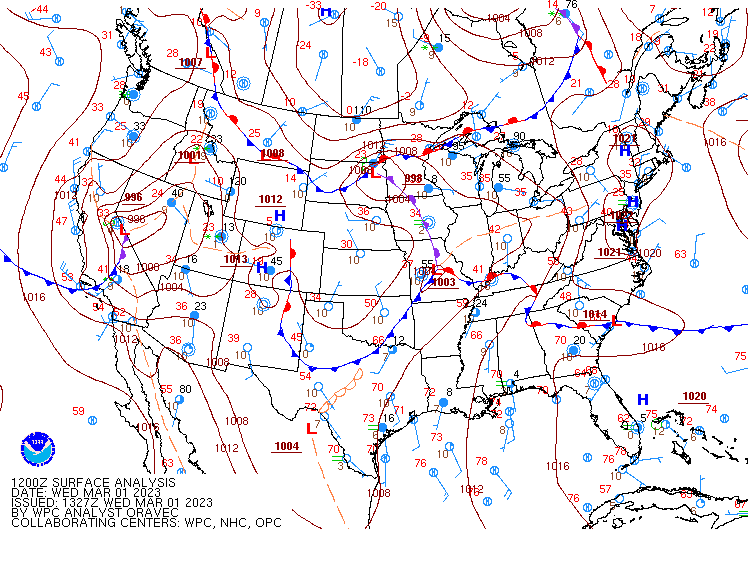

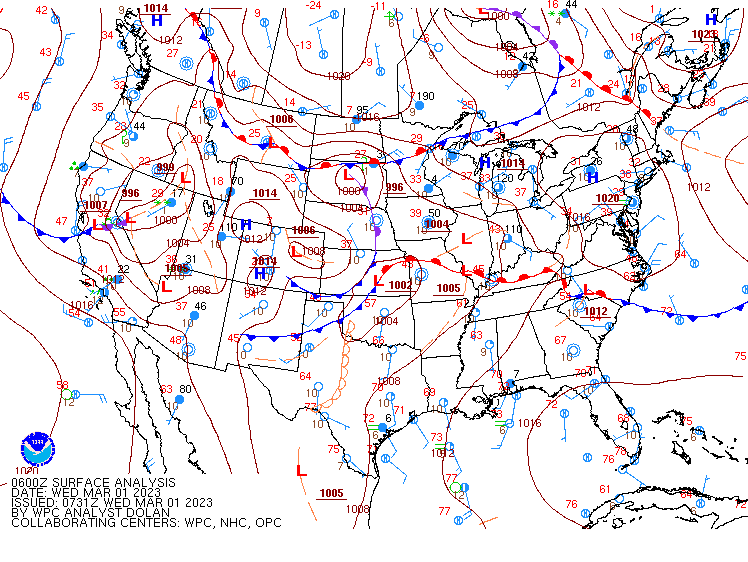

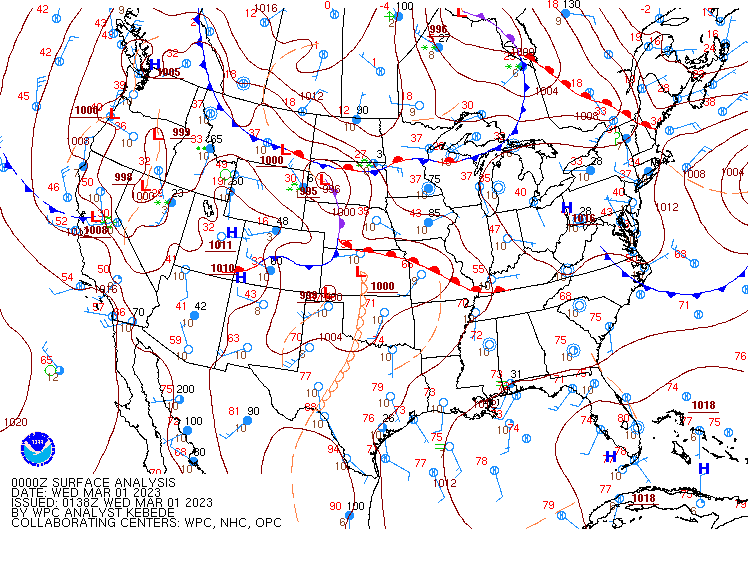

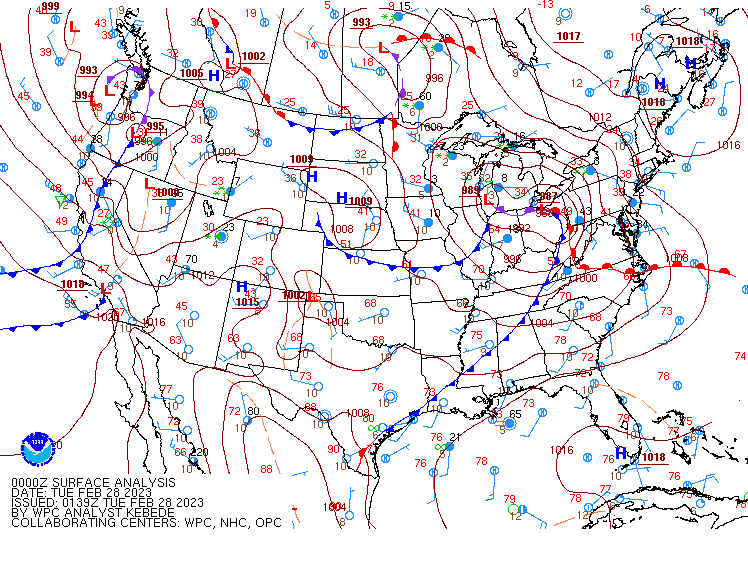

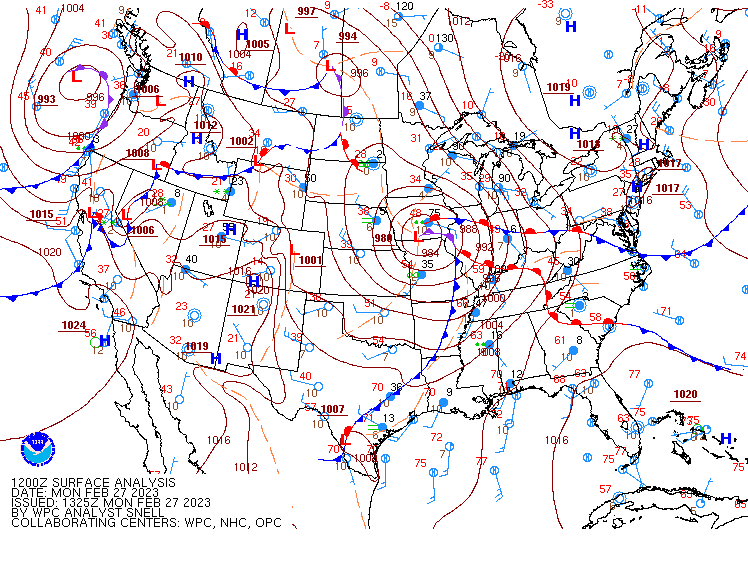

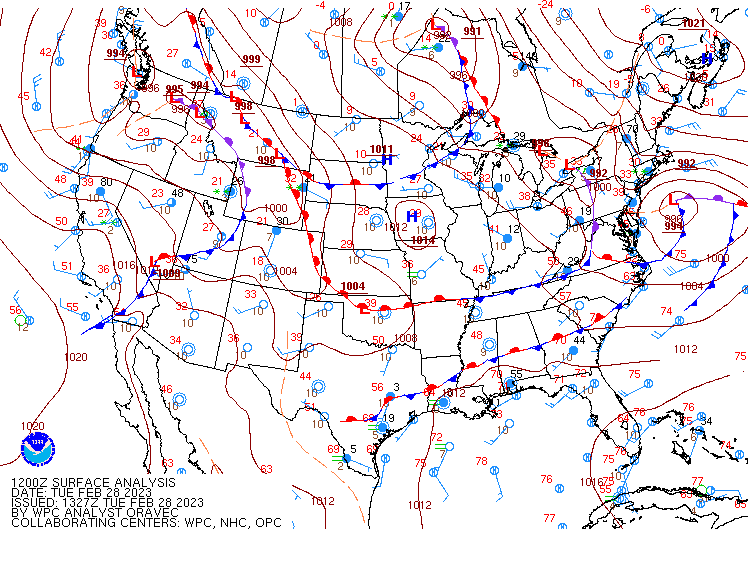

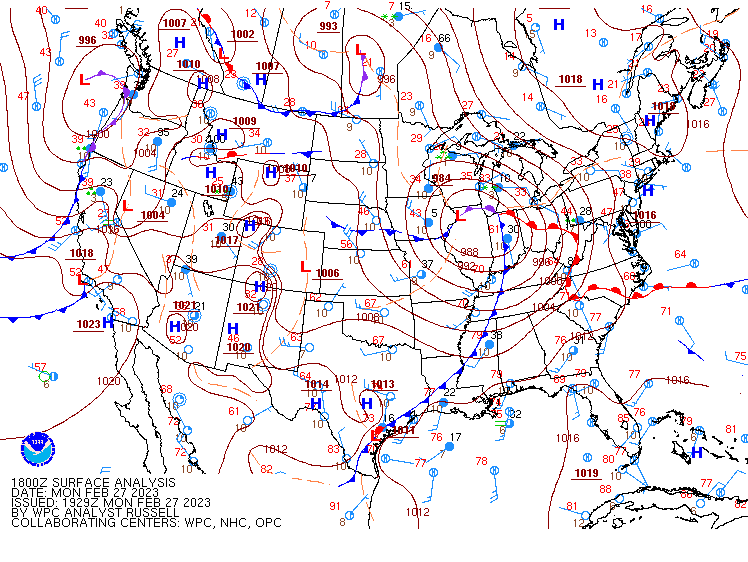

SFC analysis

Images courtesy DOC / NOAA / NWS / NCEP / WPC

https://www.wpc.ncep.noaa.gov/html/avnsfc.shtml



---

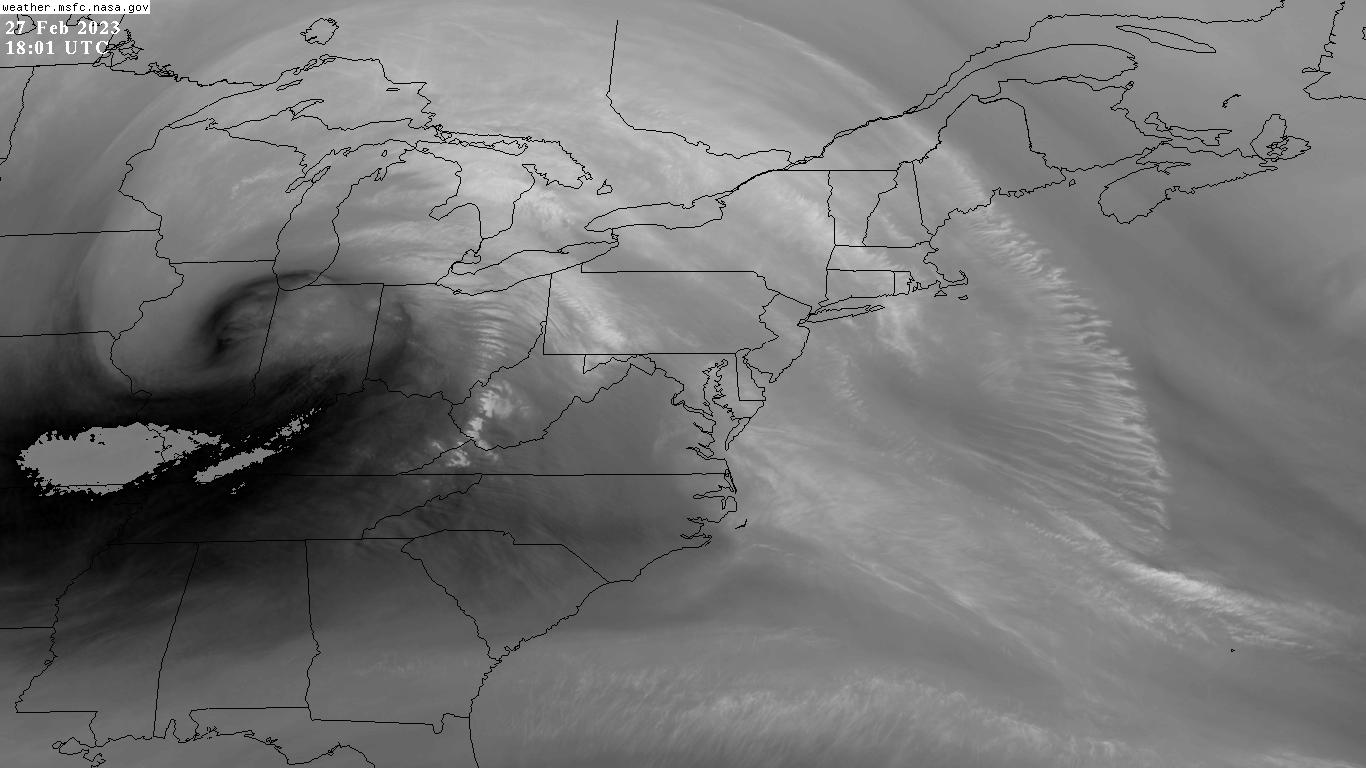

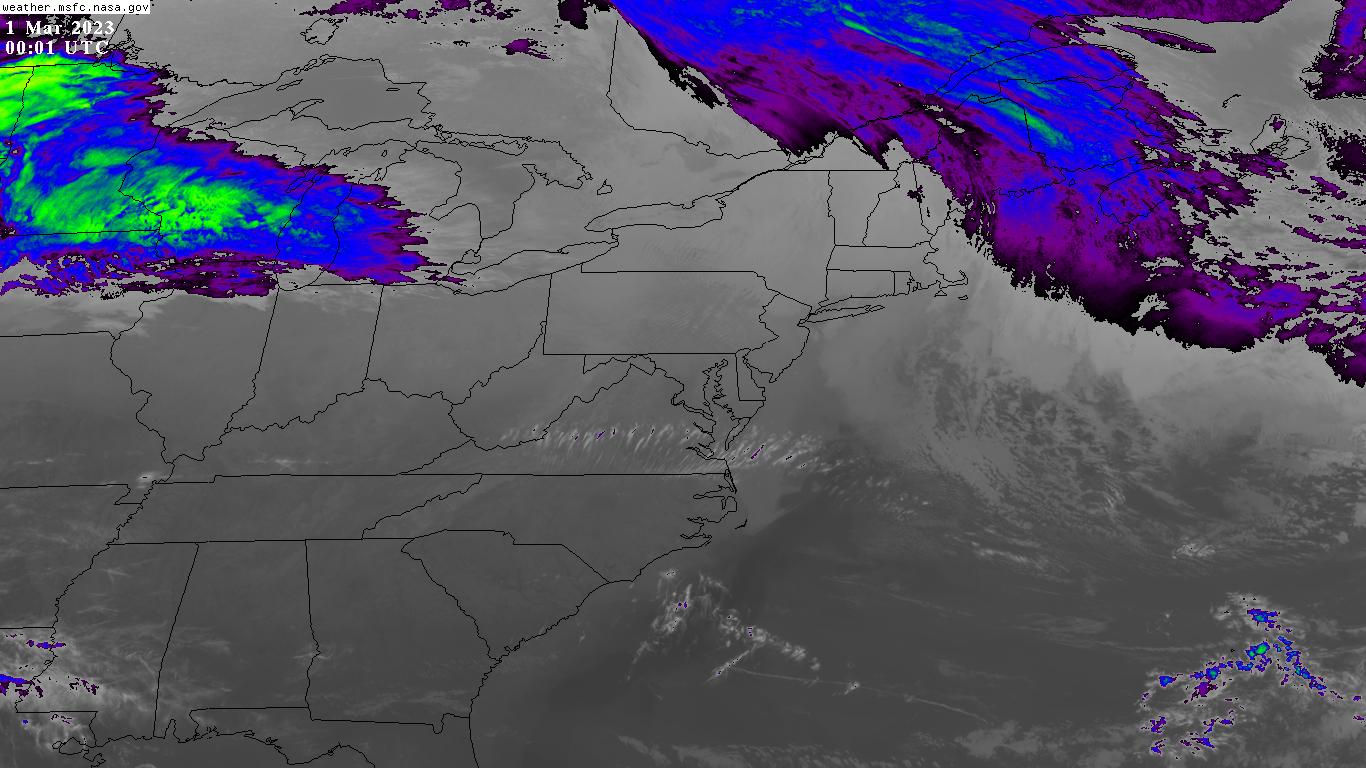

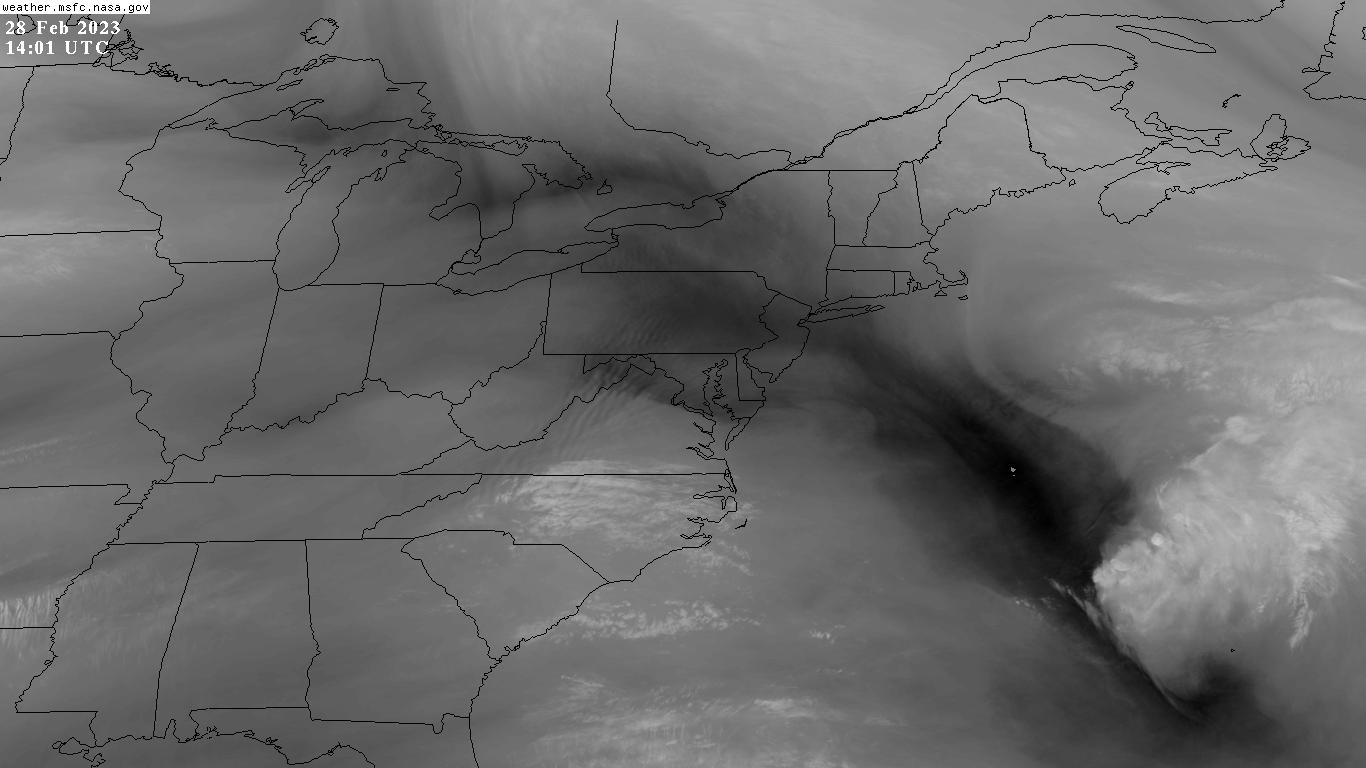

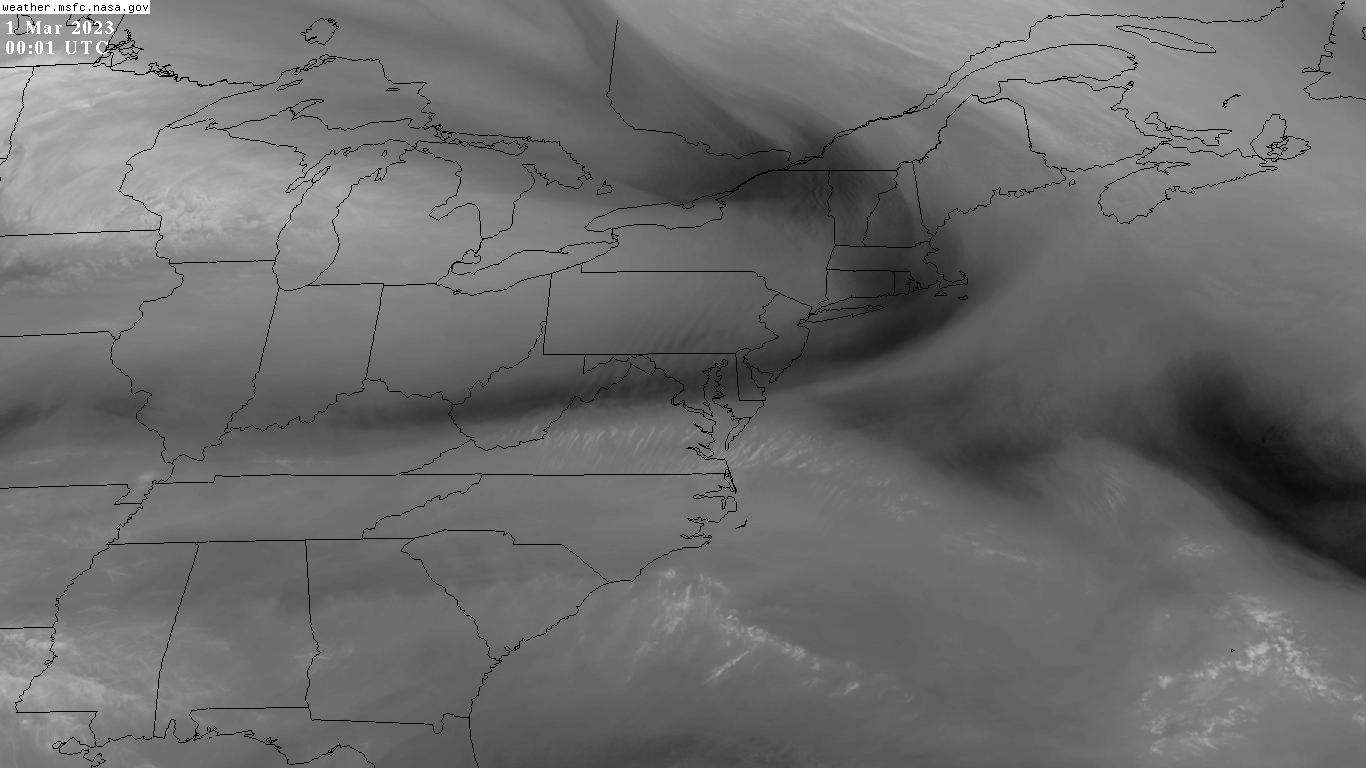

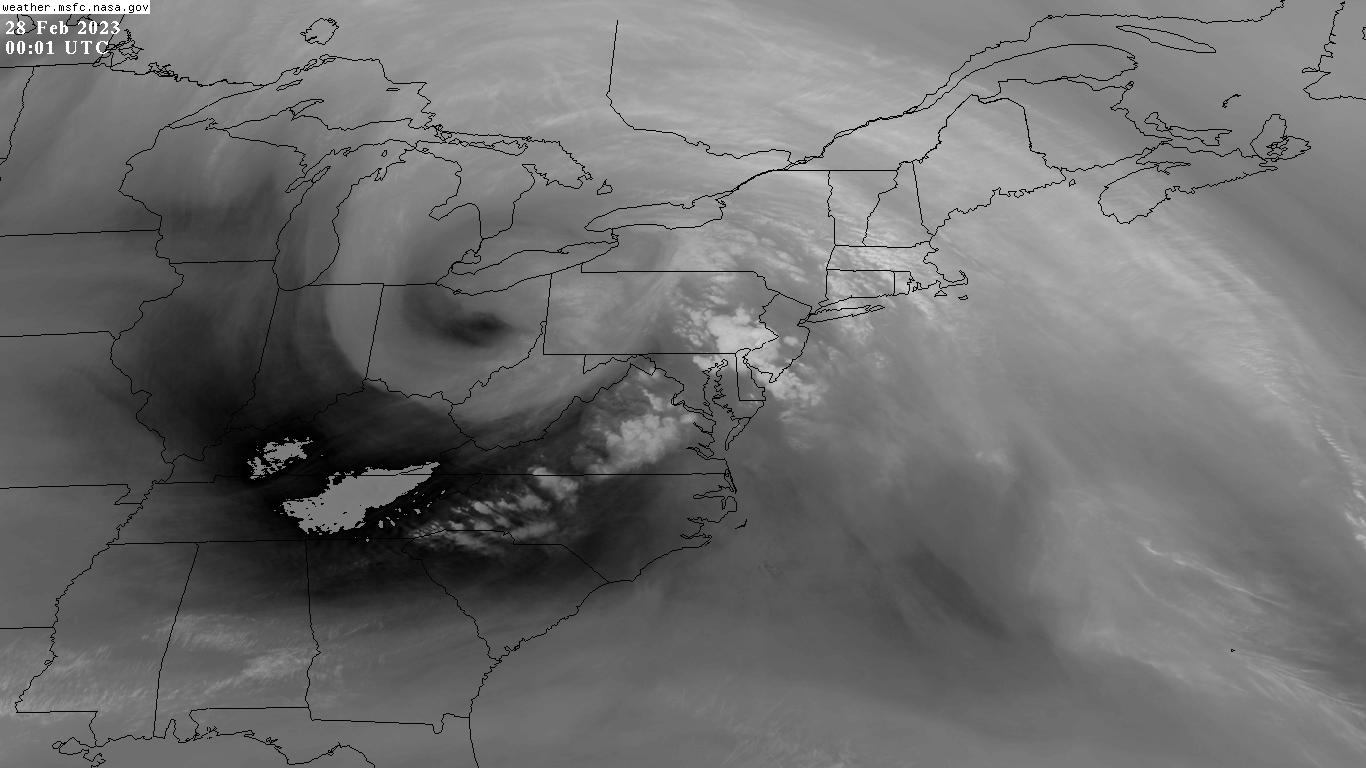

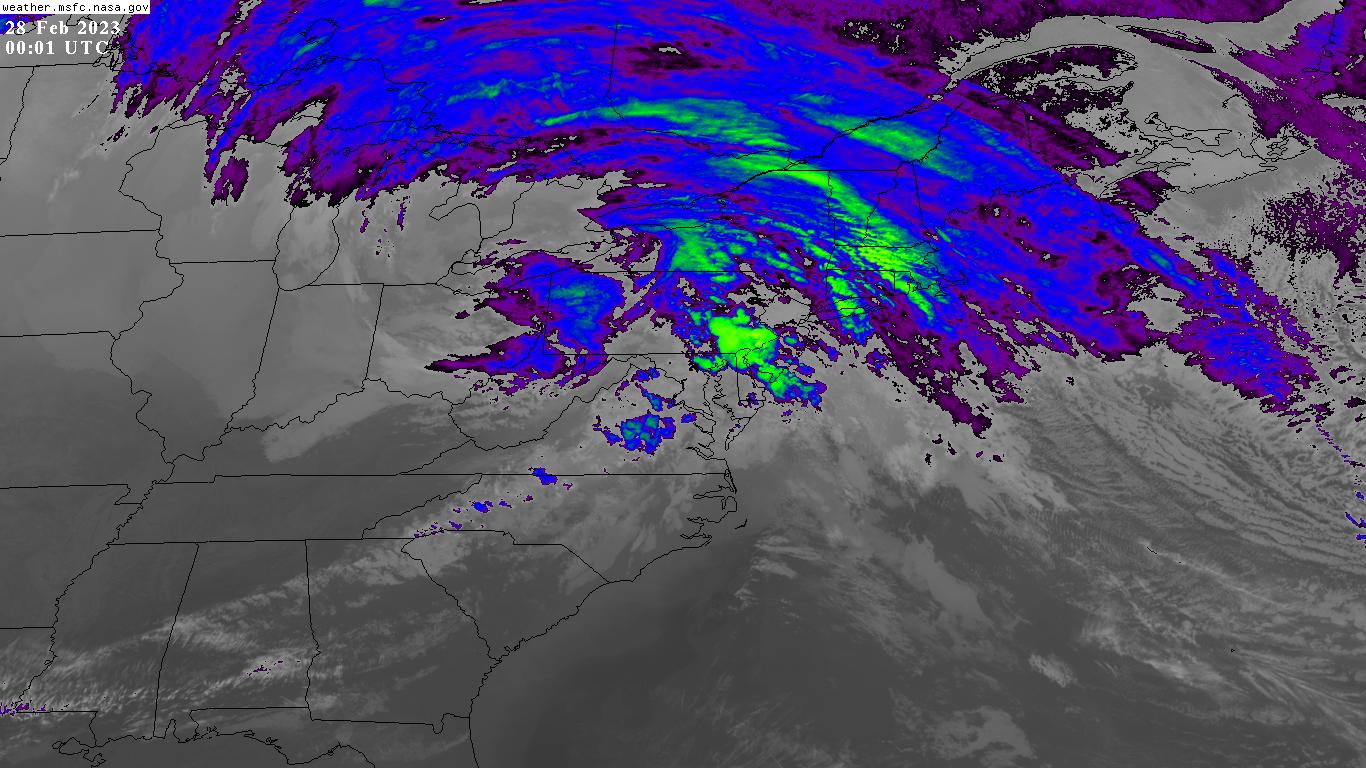

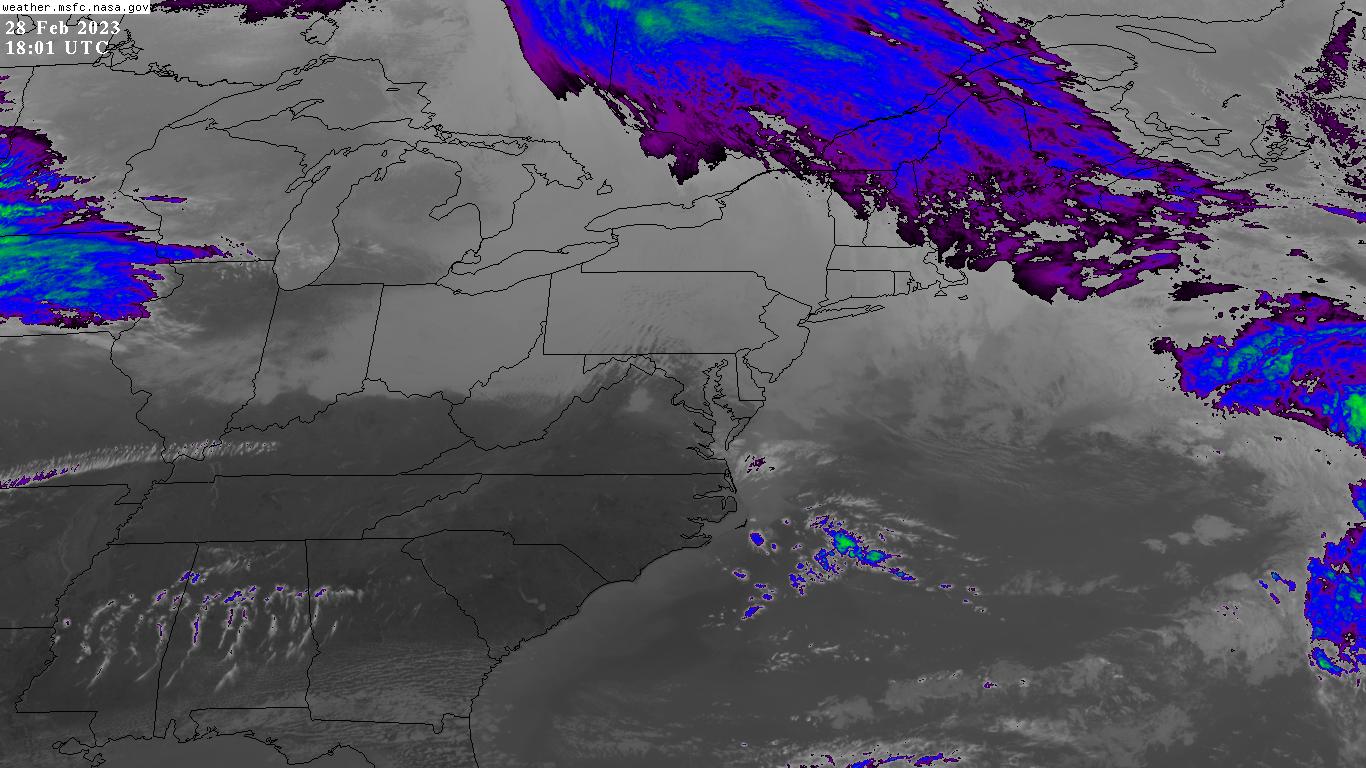

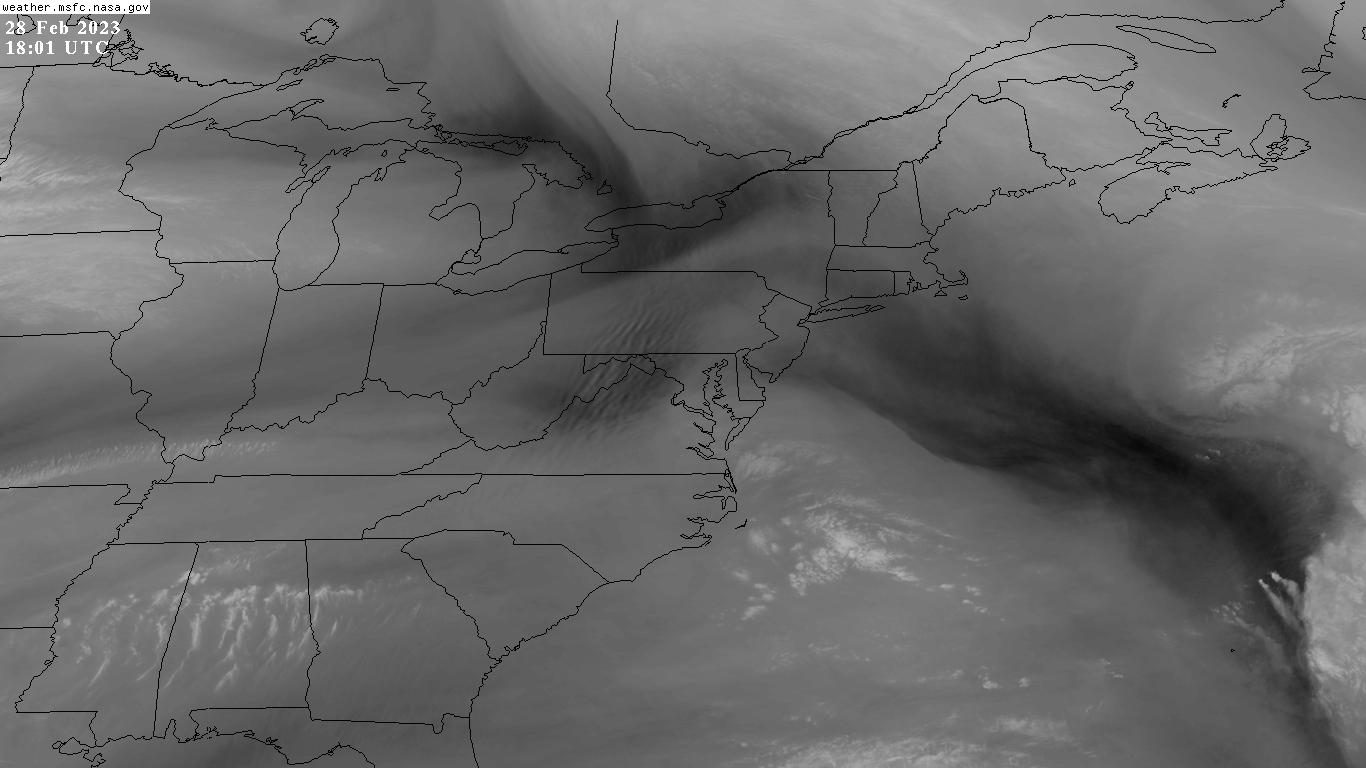

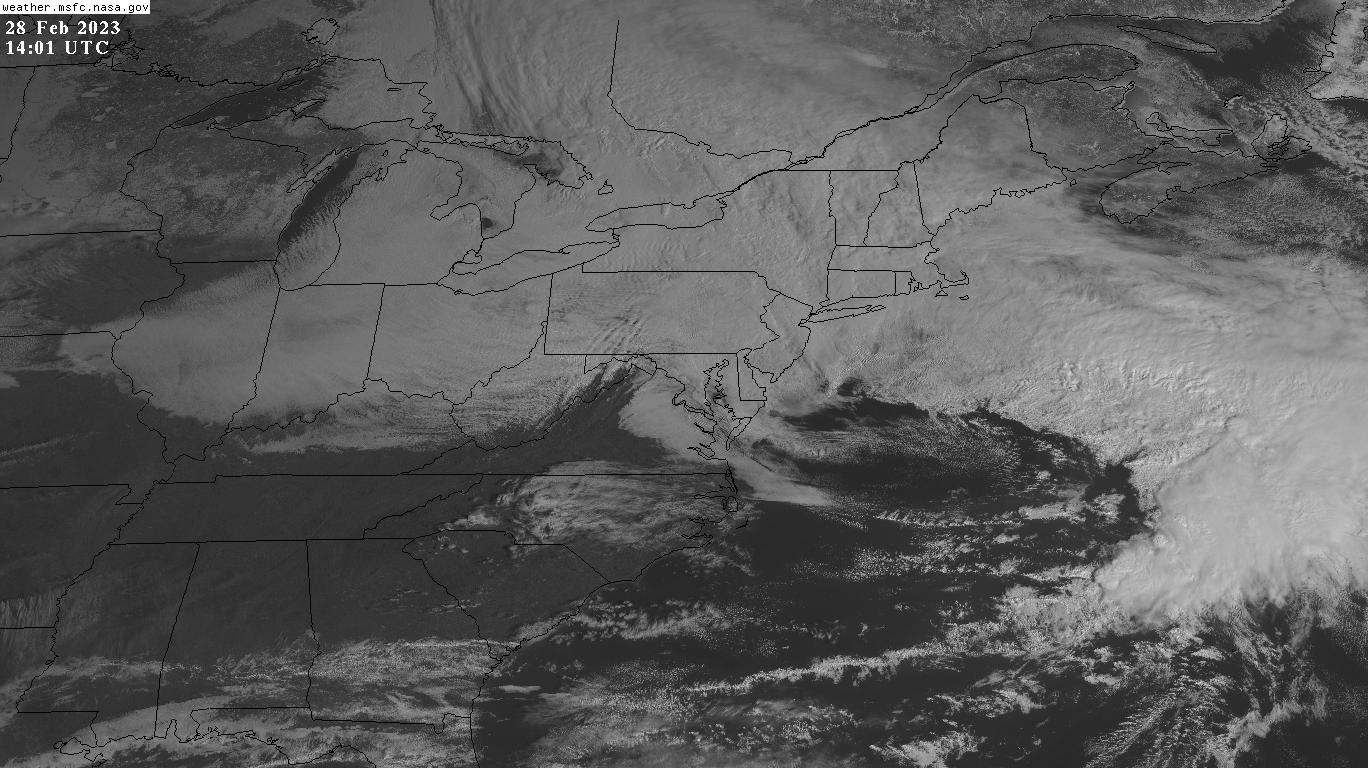

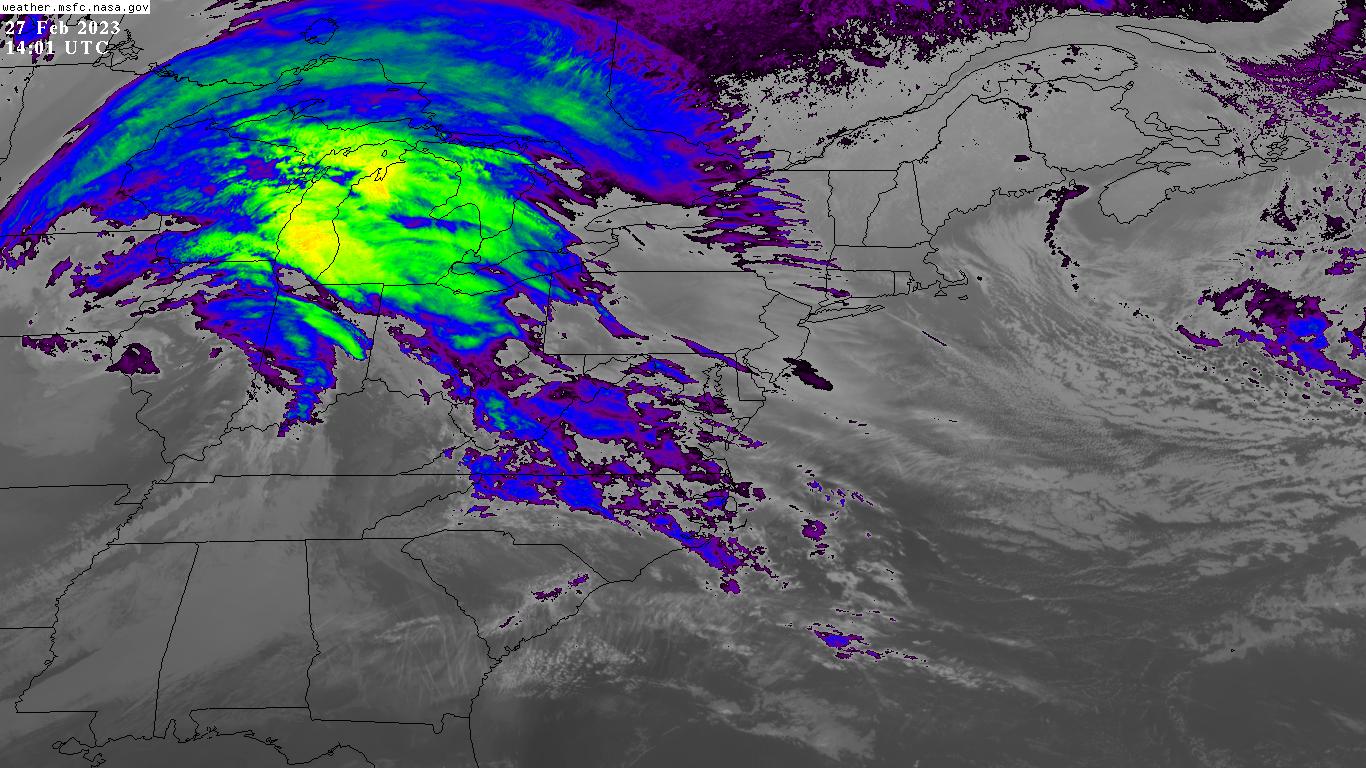

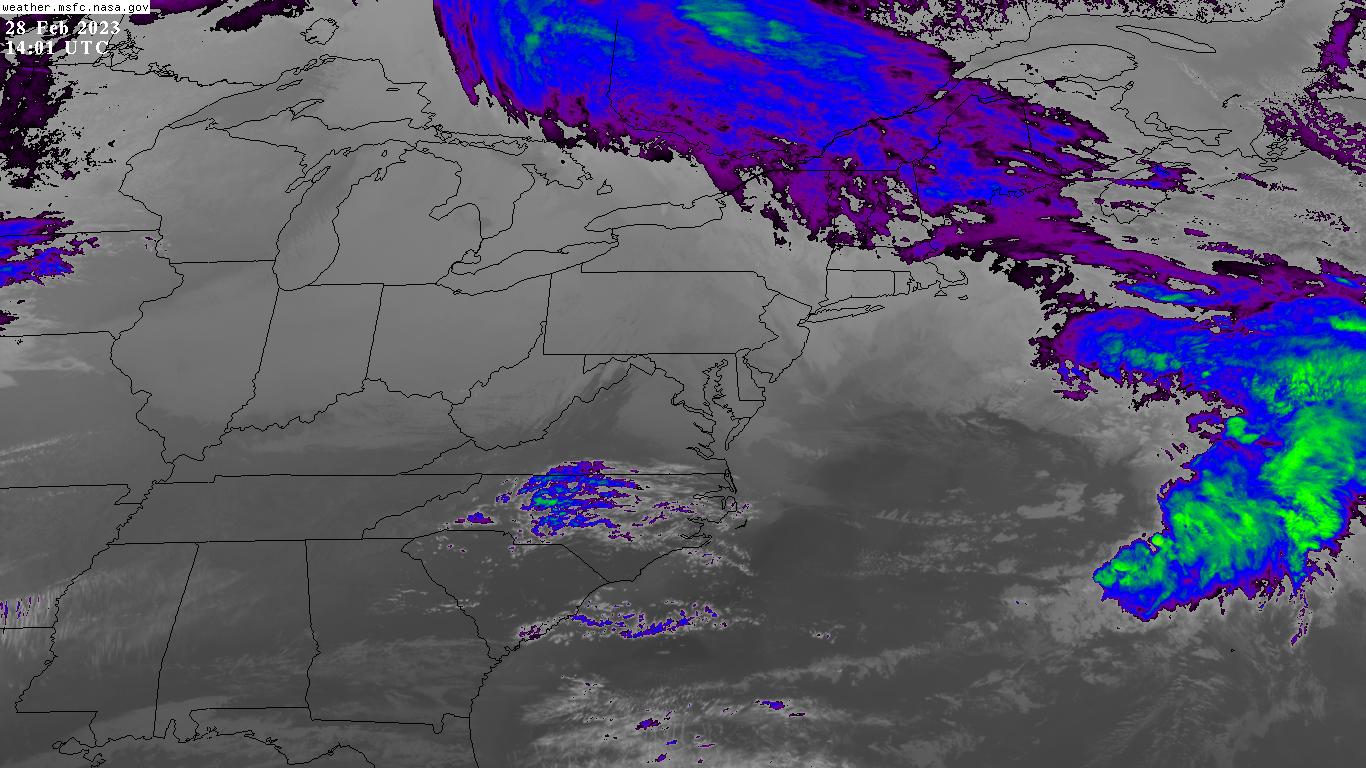

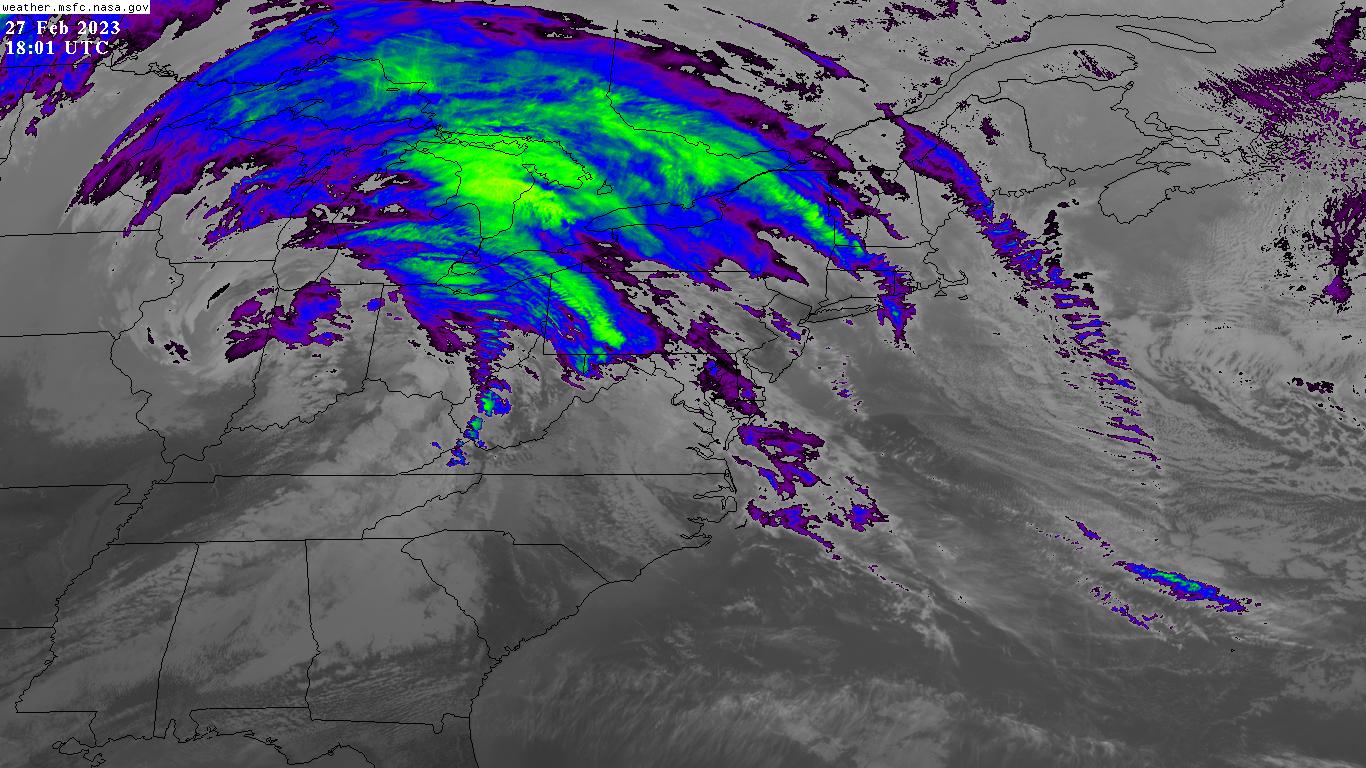

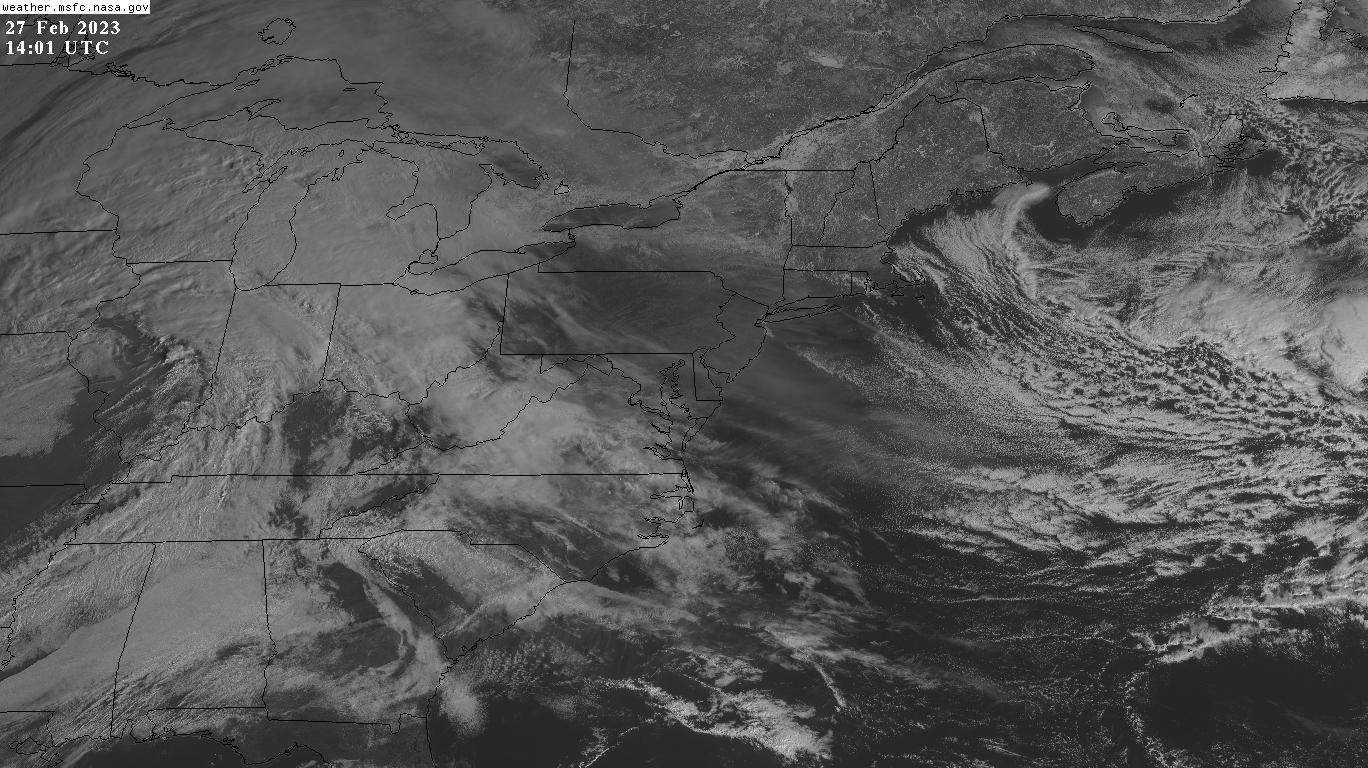

Satellite imagery courtesy George C. Marshall Space Flight Center Earth Science Branch



---

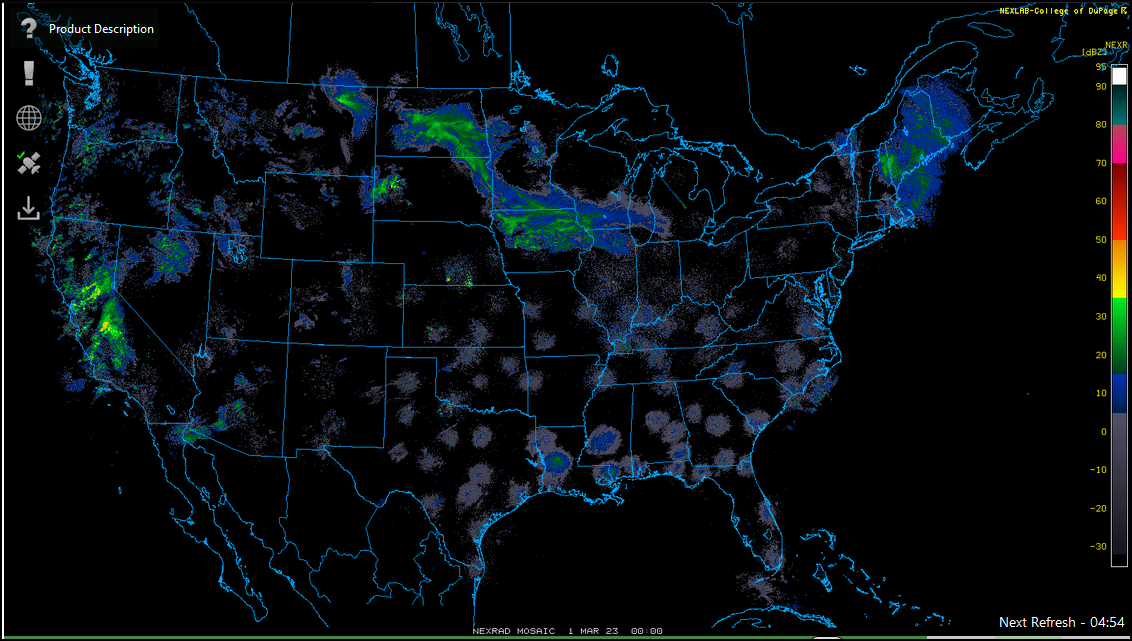

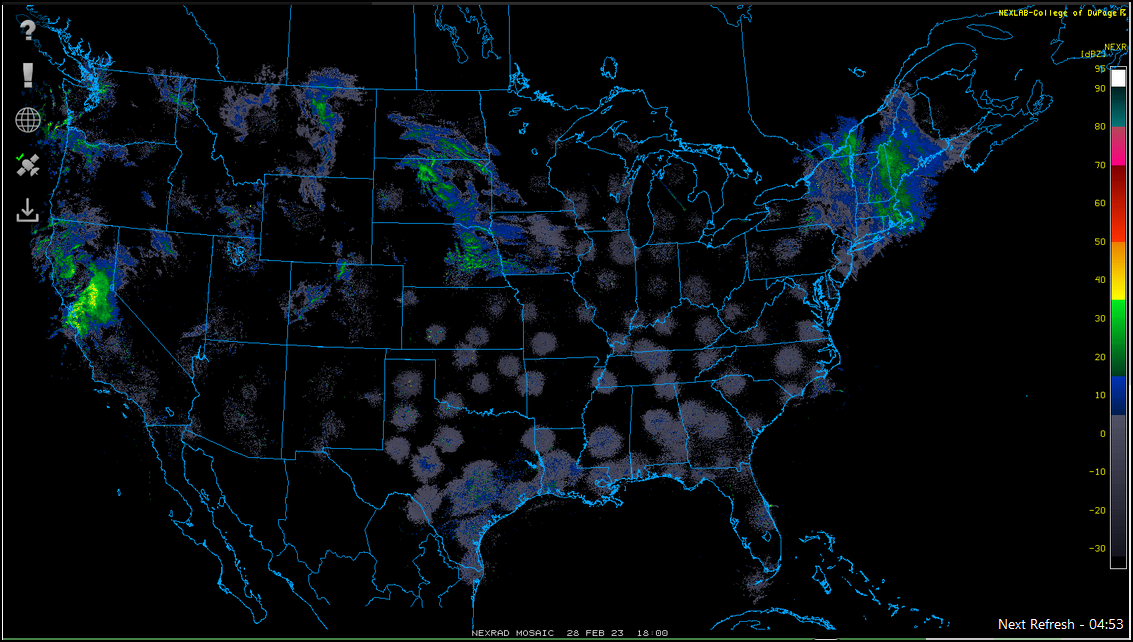

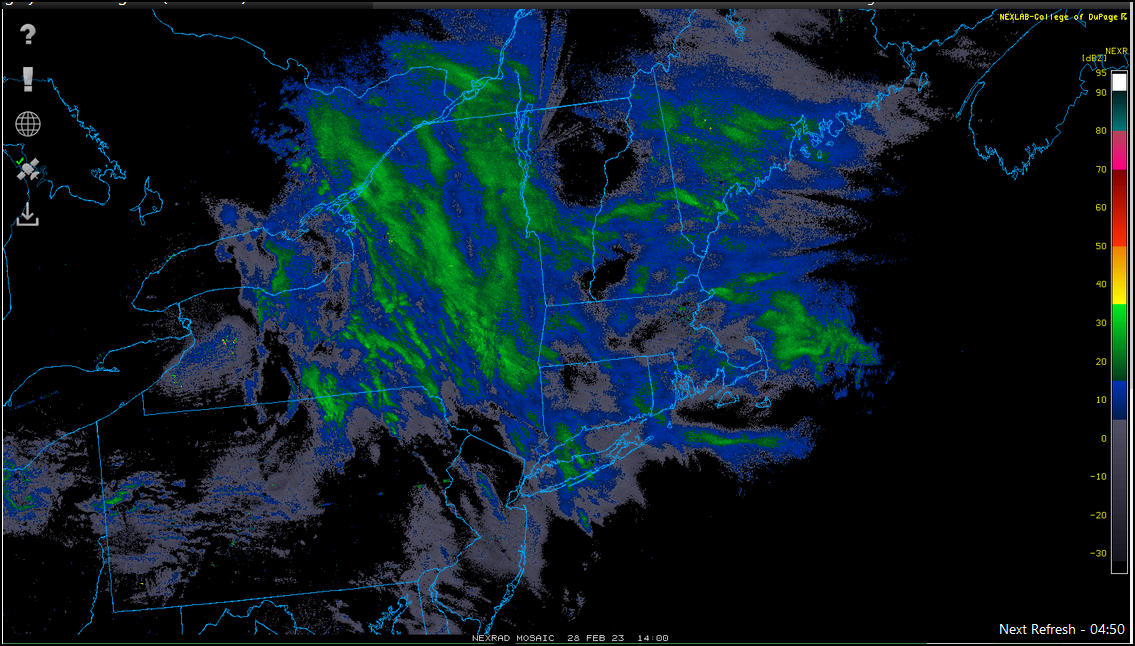

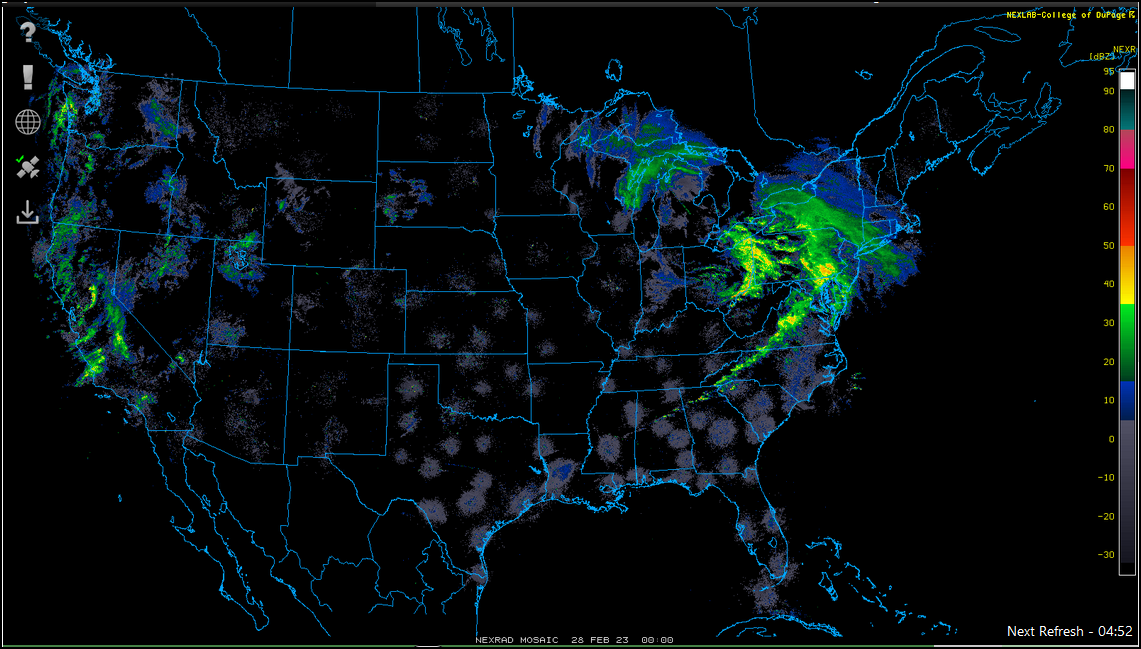

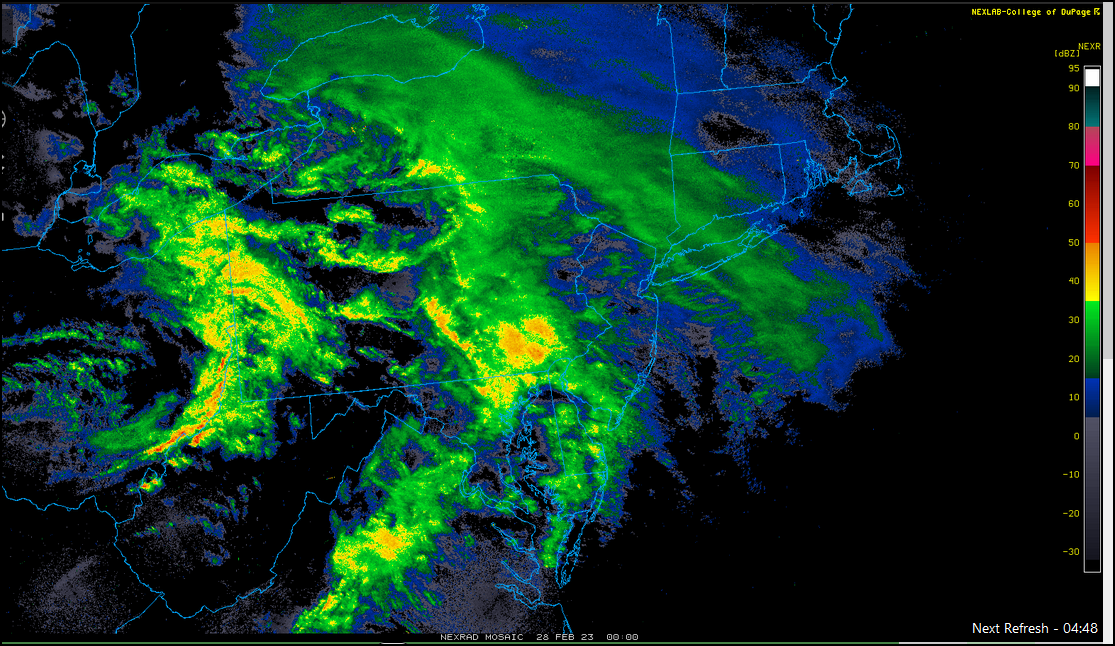

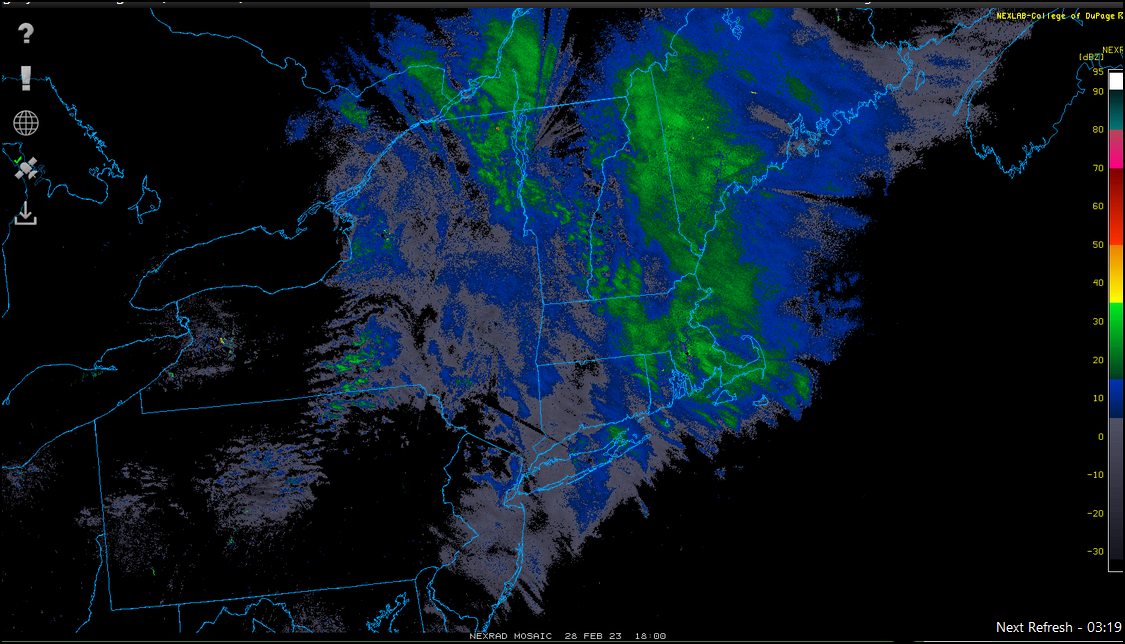

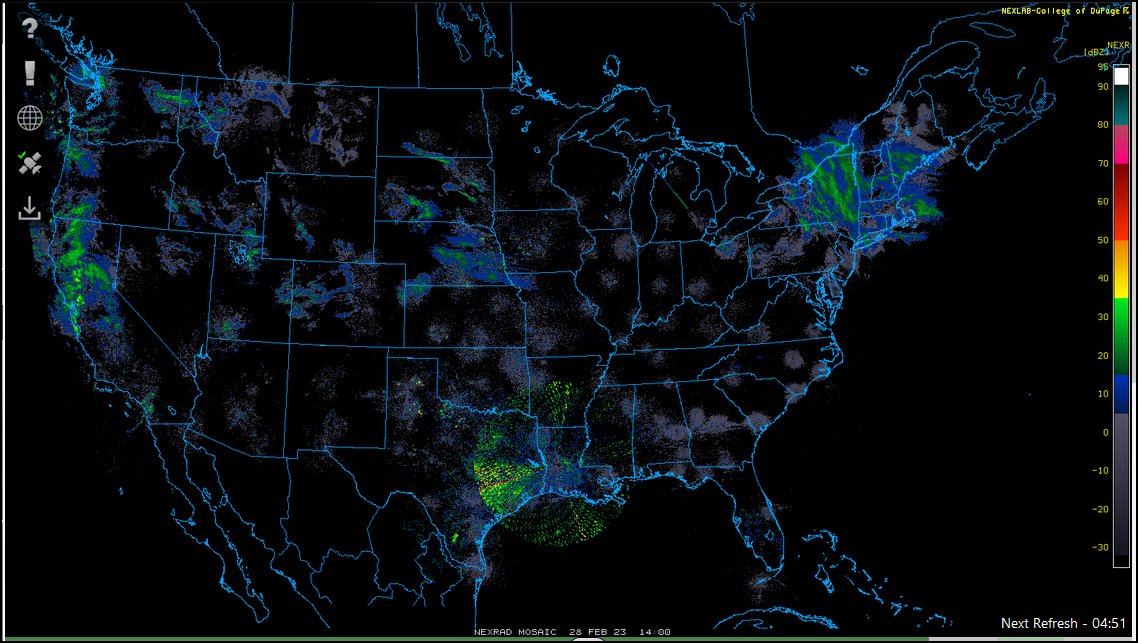

Radar imagery courtesy College of DuPage NEXLAB
